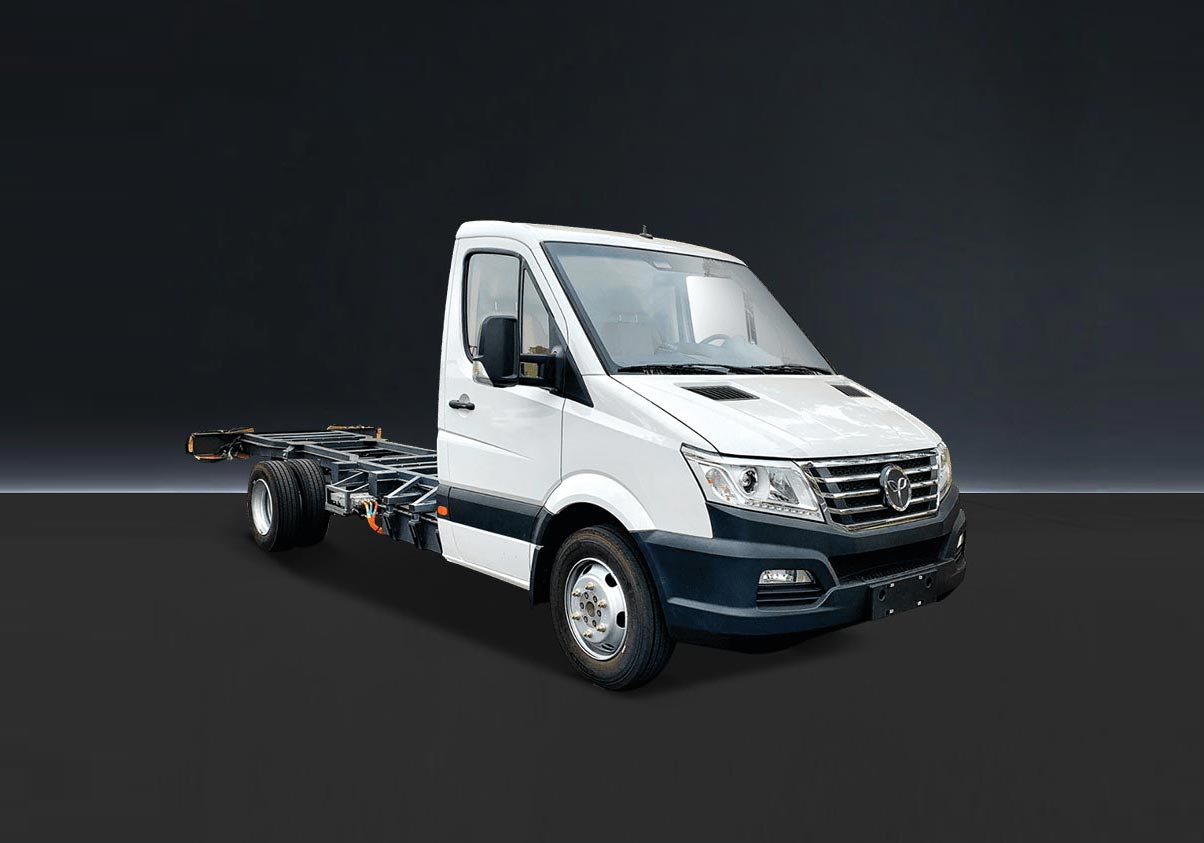

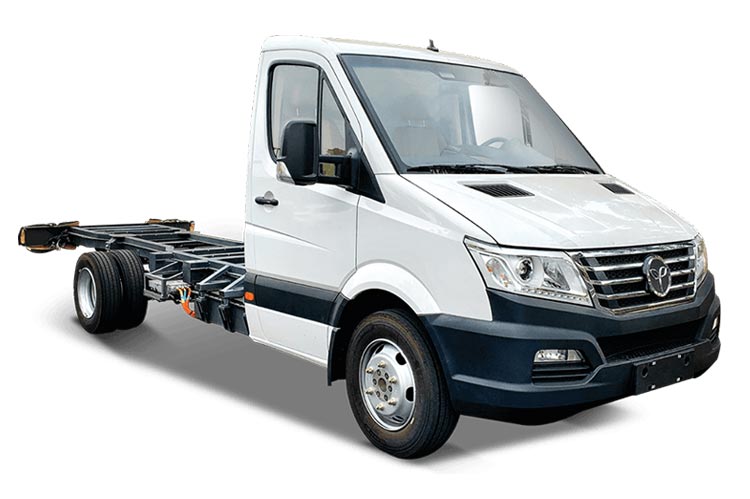

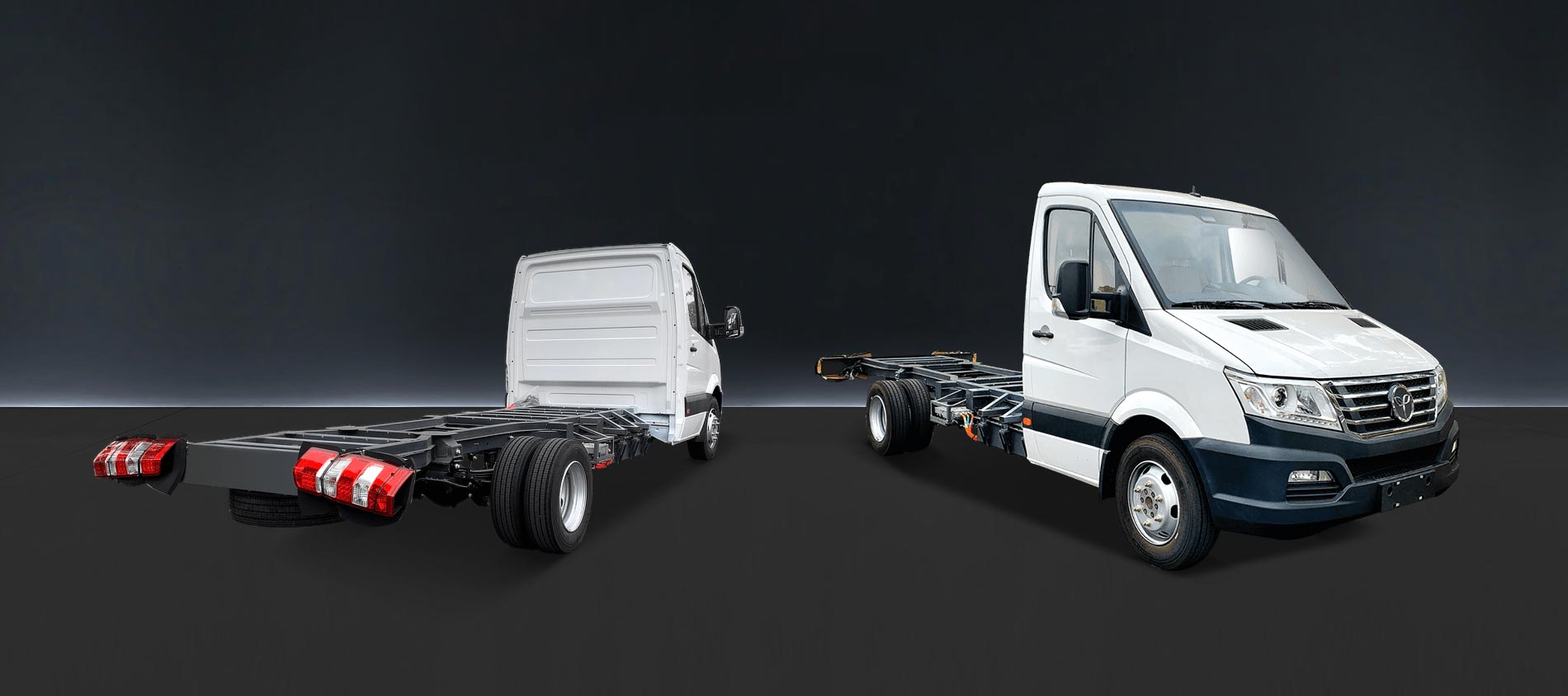

The EV Star Cab and Chassis was designed to take on any mid and last mile delivery while maintaining the benefits of being a zero-emissions vehicle.
Features:
Classification: Heavy-Duty class 4
GVWR: 14,330 lbs
Payload Capacity: 7,000 lbs
Front Axle Rated Loading: 4,409 lbs
Rear Axle Rated Loading: 9,920 lbs
Length: 283 inches
Width: 78 inches
Height: 93 inches
Charging:
Dual (AC / DC)
Level-2, J1772, 11 kW, 11 hrs
DCFC, CCS-1, 61kW, 2 hrs
Wireless DC* (optional), 60 kW, 2 hrs
Battery Size: 118 kWh
Max Seating Capacity: 2
Range: Up to 150 miles
Fuel Economy:
48 mpge, 0.77 kWh/mi, 1.3 mi/kWh
Top Speed: 68 mph
Motor Power: 150 kW max
Transmission: None / Direct Drive
Altoona Certified: EV Star Min-E Bus
CARB Certified: Yes
Battery Capacity: 118 kWh
Battery Chemistry: LiFePo4
Voltage: 576 V
Tires: 205/75R 17.5 (qty. 6)
HVAC: Electrical
Wheelbase: 170 inches
Approach: 14.7 degrees
Design Life: 10 years
Frame / Body / Roof: Steel
Vehicle Communication: CAN BUS, J1939
Buy America: Specification can vary by region, application, availability

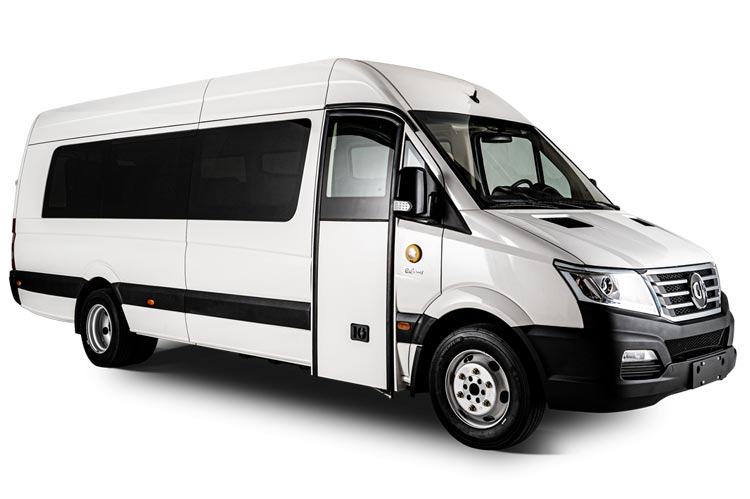

The EV Star can be used for para-transit, employee shuttles, micro-transit, and vanpool service.
Features:
Classification: Heavy-Duty class 4
GVWR: 14,330 lbs
Payload Capacity: 4,331 lbs
Length: 25 ft
Width: 79.5 inches
Height: 106.5 inches, 116.5 inches overall, 75 inches (interior)
Charging:
Dual (AC / DC)
Level-2, J1772, 11 kW, 11 hrs
DCFC, CCS-1, 61 kW, 2 hrs
Wireless DC* (option), 60 kW, 2 hrs
Seating Configurations: Front-facing, perimeter,4-6 fold-up, 2 ADA
Max Seating Capacity: 20 seating, 6 rows, 17.5 inch-wide seats
Rear Cargo Capacity: 102 cubic feet * only for cargo
Range: Up to 150 miles
Fuel Economy:
43 MPGE
Motor Power: 150 kW max
Transmission: None / Direct Drive
Altoona Certified: Yes
CARB Certified: Yes
Battery Capacity: 118 kWh
Battery Chemistry: LiFePo4
Voltage: 576 V
Tires: 205/ 75R/ 17.5 (qty. 6)
Emergency Exits: Hatch, window, door
HVAC: 39,239 BTU/h, front, rear, electric
Wheelbase: 170 inches
Approach: 14.7 degrees
Design Life: 10 years
Frame / Body / Roof: Steel
Vehicle Communication: CAN Bus
Passenger Door: Electric (Plug)
Luggage Cargo: Rear cargo, luggage rack
ADA Lift: Side or rear options
Buy America: Yes

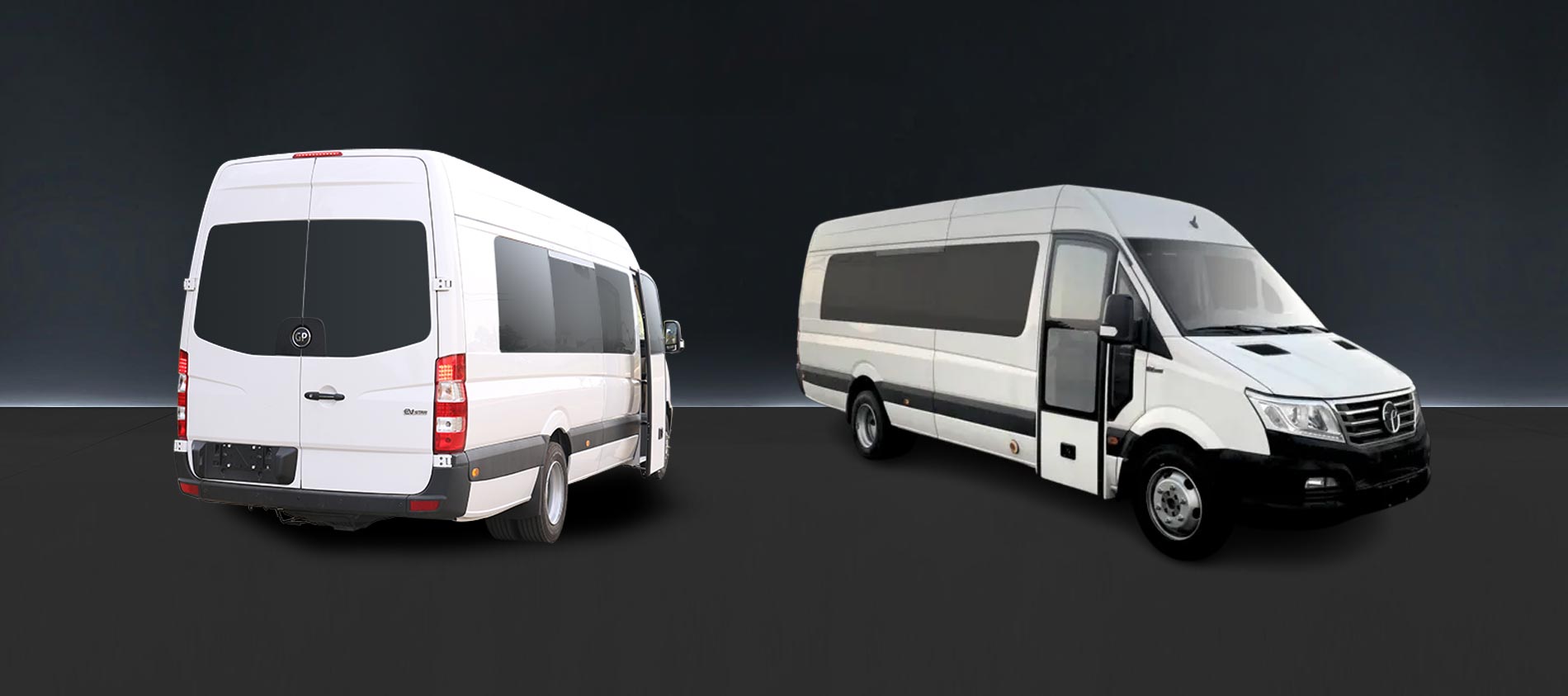

The EV Star min-E Bus can be used for para-transit, employee shuttles, micro-transit, and vanpool service.
Features:
Classification: Heavy-Duty class 4
GVWR: 14,330 lbs
Payload Capacity: 4,331 lbs
Length: 25 ft
Width: 79.5 inches
Height: 106.5 inches, 116.5 inches overall, 75 inches (interior)
Charging:
Dual (AC / DC)
Level-2, J1772, 11 kW, 11 hrs
DCFC, CCS-1, 61 kW, 2 hrs
Wireless DC* (option), 60 kW, 2 hrs
Seating Configurations: Front-facing, perimeter,4-6 fold-up, 2 ADA
Max Seating Capacity: 20 seating, 6 rows, 17.5 inch-wide seats
Rear Cargo Capacity: 102 cubic feet * only for cargo
Range: Up to 150 miles
Fuel Economy:
43 MPGE
Motor Power: 150 kW max
Transmission: None / Direct Drive
Altoona Certified: Yes
CARB Certified: Yes
Battery Capacity: 118 kWh
Battery Chemistry: LiFePo4
Voltage: 576 V
Tires: 205/ 75R/ 17.5 (qty. 6)
Emergency Exits: Hatch, window, door
HVAC: 39,239 BTU/h, front, rear, electric
Wheelbase: 170 inches
Approach: 14.7 degrees
Design Life: 10 years
Frame / Body / Roof: Steel
Vehicle Communication: CAN Bus
Passenger Door: Electric (Plug)
Luggage Cargo: Rear cargo, luggage rack
ADA Lift: Side or rear options
Buy America: Yes

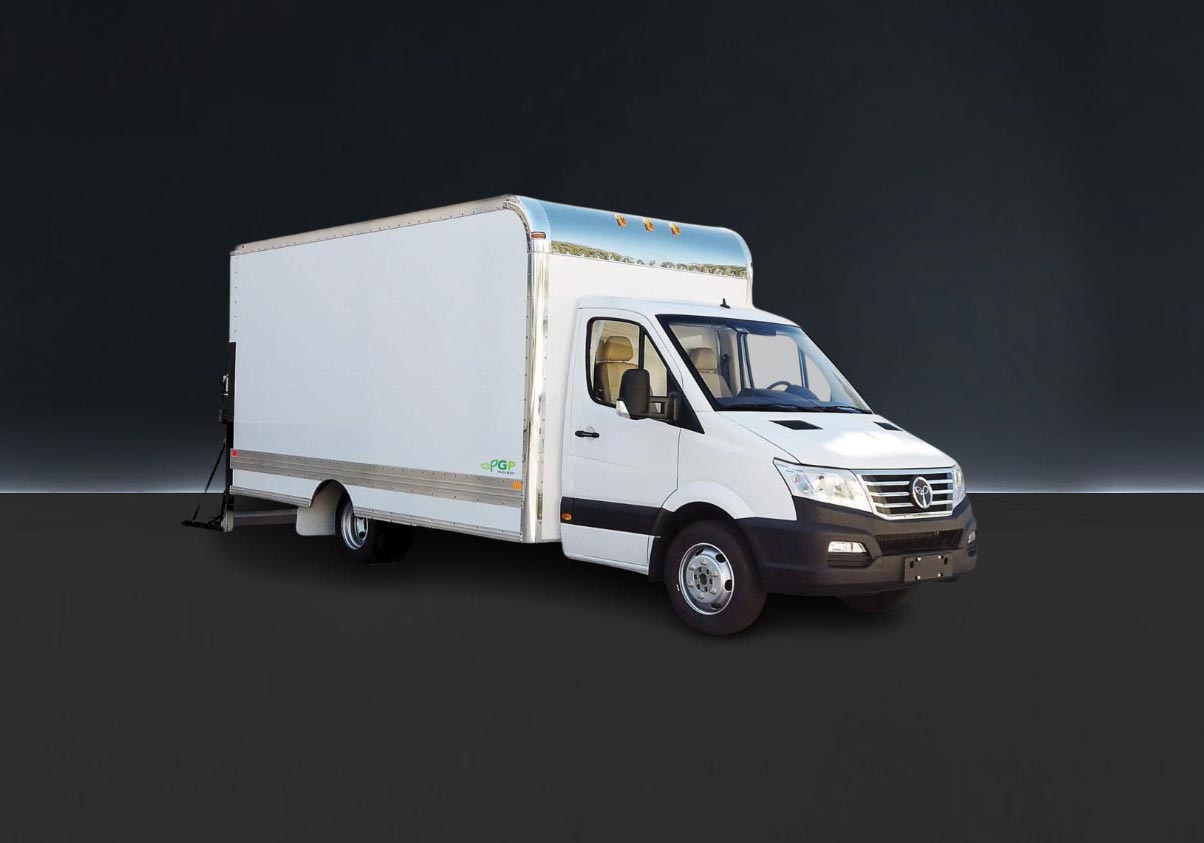

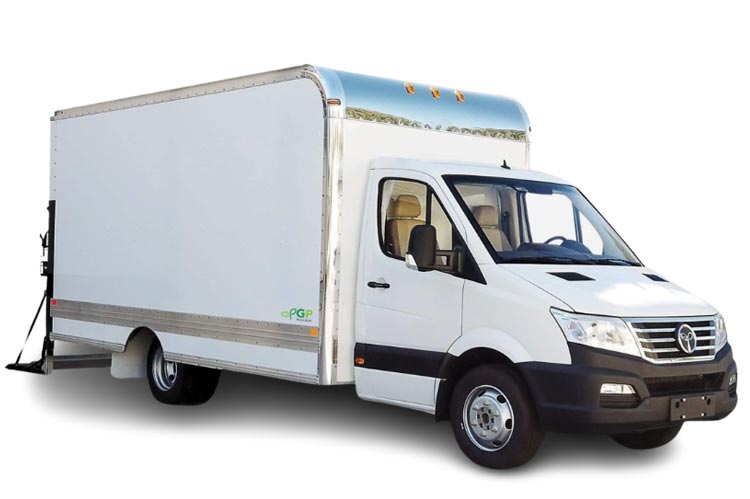

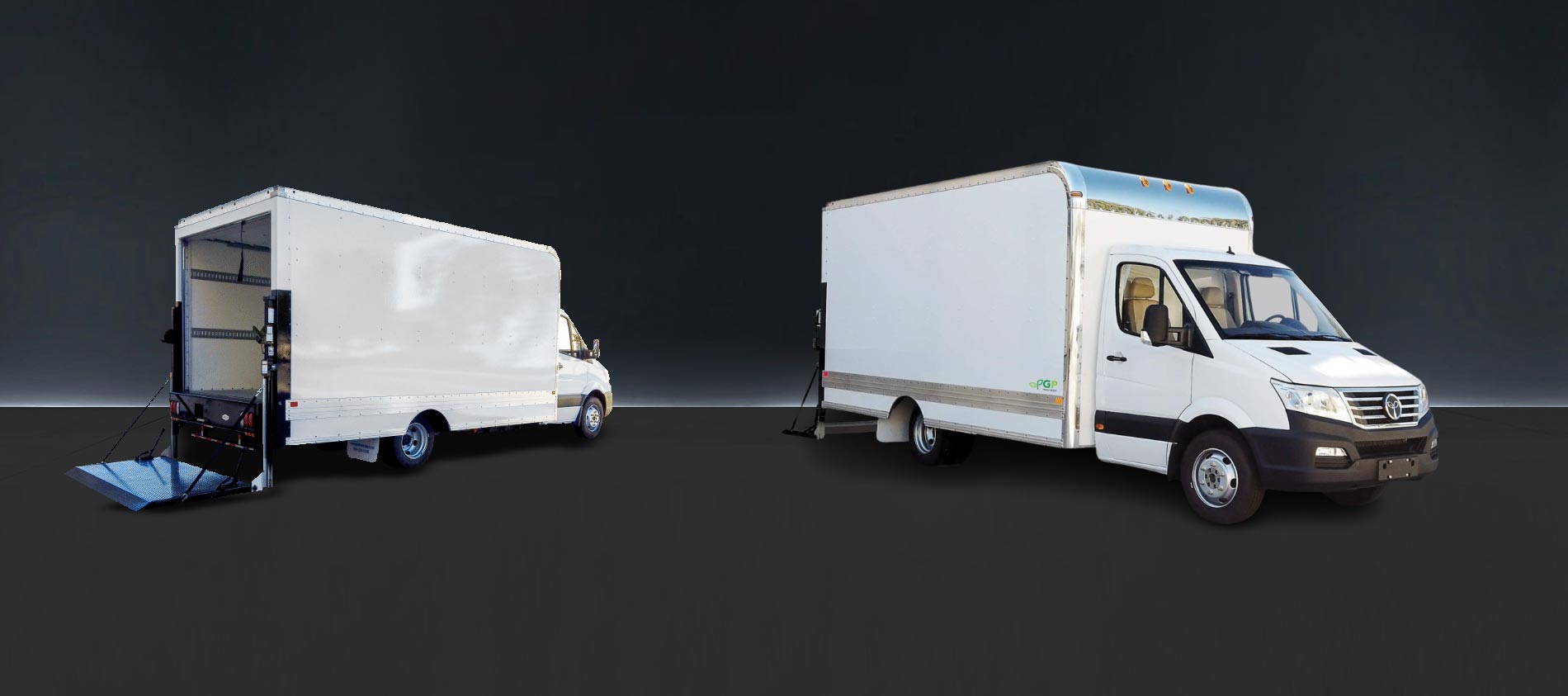

The EV Star Cargo Plus exceeds delivery needs with a capacity of up to 5,000 pounds and a driving range of 150 miles.
Features:
Classification: Heavy-Duty class 4
GVWR: 14,330 lbs.
Payload Capacity: Up to 5,000 lbs (as built with lift gate)
Length: 25 ft
Width: 96 inches
Charging:
Dual (AC / DC)
Level-2, J1772, 11 kW, 8 hrs
DCFC, CCS-1, 61kW, 2 hrs
Wireless DC, 55 kW, 2.5 hrs
Max Seating Capacity: 2
Lift Gate: Optional
Rear Cargo Capacity: 102 cubic feet
Range: Up to 150 miles
Fuel Economy:
43 MPGE
Motor Power: 150 kW max
Transmission: None / Direct Drive
CARB Certified: Yes
Battery Capacity: 118 kWh
Battery Chemistry: LiFePo4
Voltage: 576 V
Tires: 205/75R 17.5
HVAC: Electric, Heating and Cooling
Wheelbase: 170 inches
Approach: 14.7 degrees
Design Life: 10 years
Frame / Body / Roof: Steel / Composite
Vehicle Communication: CAN Bus
The GreenPower Difference
Safe • Efficient • Green
GreenPower’s vehicles are built from the ground up to be electric and are never converted. This ‘clean sheet’ design ensures a safe, durable, and reliable form of transportation. It allows for optimal placement of the battery and propulsion systems, increasing the overall vehicle strength and significantly enhancing the battery weight distribution compared to other electric vehicles. The GreenPower chassis is designed to be the strongest, safest, and most durable product on the market.
GreenPower designs, builds, markets, and supports electric vehicles that not only meet the operational demands of transporting goods and passengers; GreenPower vehicles do so with unmatched safety and efficiency. GreenPower vehicles use SAE J1772, standard charging with industry-best charging rates for both level 2 and the DC fast charging and we also offer wireless charging on the EV Star family of vehicles for operator-free driving overcharging.
